Description

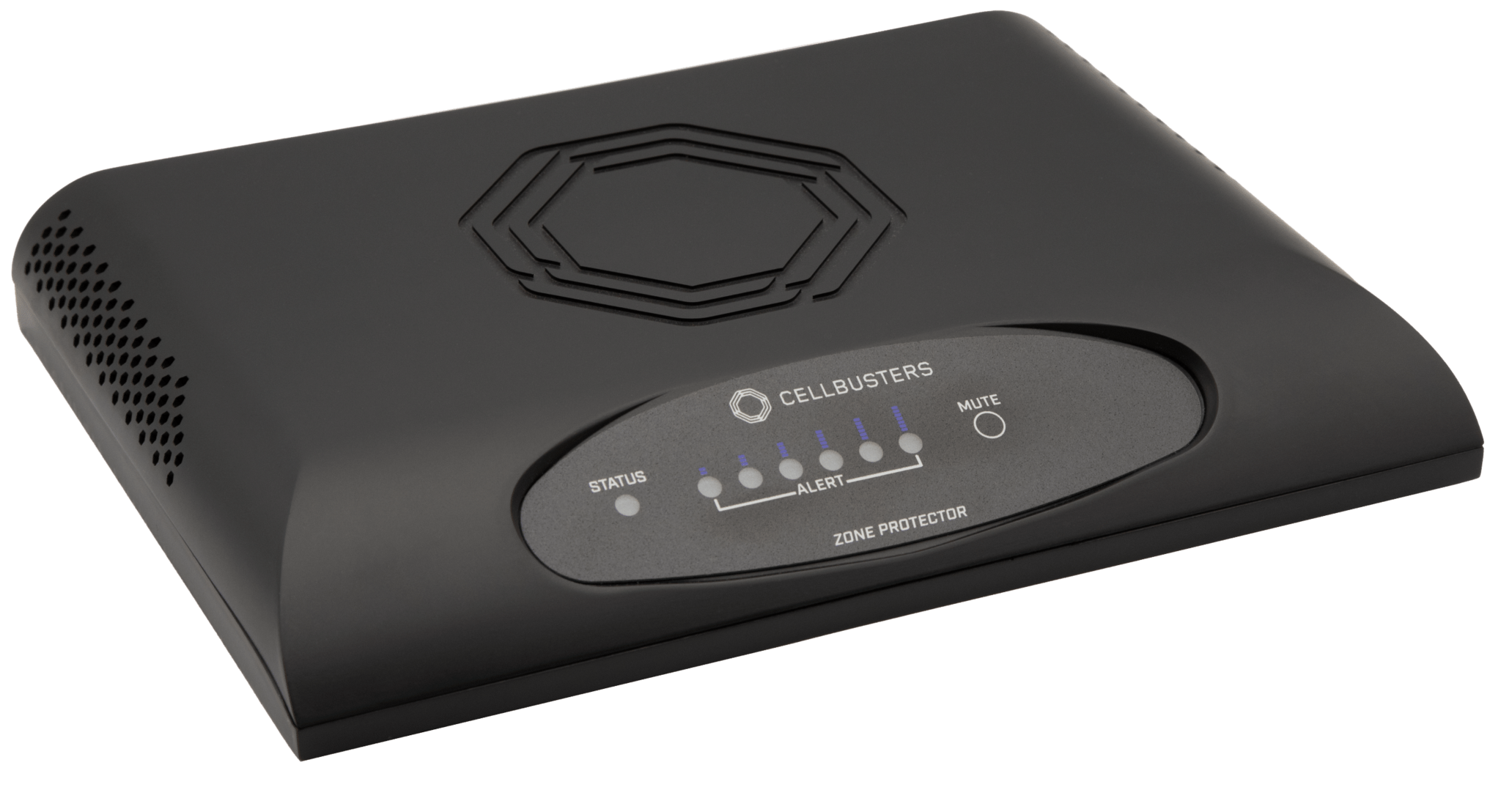

Cellbusters Zone Protector
Detection of cell phones and hidden transmission devices.
Compatible with:
Cellbusters Logo 2G
Cellbusters Logo 3G
Cellbusters Logo 4G
Cellbusters Logo 5G
Cellbusters Logo BT
Cellbusters Logo LTE
Cellbusters Logo Wifi
Zone Protector™ provides maximum protection for your surroundings by continuously scanning for cell phones and user-selectable RF transmissions. When cellular activity or relevant RF activity is detected, Zone Protector™ can be set to activate a selection of alert options or to silently record all detected activity. Engineered to extremely high standards, Zone Protector™ offers excellent detection accuracy with virtually zero false alarms.
Features at a Glance
Deploy as a standalone or networked device depending on your environment
Detects all mobile phones in all countries (standby, text, data and calls)
Detects all protocols including 2G, 3G, 4G, LTE, GSM, CDMA, Wifi, Bluetooth, etc.
Audio announcement, visual LED alert or silent recording modes
Easily adjustable detection radius for small rooms or larger areas
Works out of the box for quick and easy deployment, also works as a cellular signal jammer
Sensitivity adjustable without a connected PC (ideal for restricted areas)
Intuitive web interface for advanced configuration and administration
Future-proof design: simply add new channels as cellular networks evolve
Includes audio output jack and SMA connector for optional external antenna
Control third-party devices with the included relay interface
Easily add or disable detection channels via browser (e.g. disable detection Wi-Fi)
Power over Ethernet (PoE) and worldwide A/C adapter included
Optional internal battery for backup power or portable use
Fully compatible with optional Cellbusters Zone Manager™ and cellular signal jammers
Excellent detection accuracy with virtually zero false alarms
Includes 12-month standard warranty with access to firmware downloads
Extended and advanced warranty options available
High-quality American engineering and technology – CE and FCC certified
Adjustable detection range
The detection range of the Zone Protector™ can be easily adjusted depending on the environment. For example, you can limit the detection radius to a small conference room or extend it to scan an entire open-plan office, factory floor or warehouse.
The set detection sensitivity can be selected using a combination of buttons on the Zone Protector™ without the need for a PC, simplifying deployment. The easy-to-use web interface allows for more detailed control depending on your requirements.
Standalone, portable or networked deployment
Zone Protector™ can be carried as a portable device, deployed as a standalone device in conference rooms or classified areas, or can be networked, depending on requirements or constraints.
With multiple power options, including an included universal AC adapter, Power over Ethernet (PoE) connectivity, or an optional internal battery, Zone Protector™ is ideal for any situation.
Control third-party devices
Zone Protector™ can be set to control a third device when an alarm is raised. The included relay alarm option can activate sirens, alarms, strobes, access control devices, cell phone jammers, etc. The length of time the relay remains active after an alarm is raised can also be configured via the web interface.
Control third-party devices
Flexible deployment options to fit most environments. Zone Protector™ can also communicate over an existing Wi-Fi network via a wireless bridge, such as the Motorola CB3000 Client Bridge, which is ideal when structured cabling is unavailable.
You can also install Zone Protector™ in a tamper-proof, environmentally controlled enclosure for industrial or more rugged applications. This flexibility ensures that Zone Protector™ can be quickly and easily deployed in almost any environment.
Connect over Wi-Fi – protect your investment
Zone Protector™ is fully upgradable and supported by Cellbusters, ensuring your investment is protected. New carrier frequencies can be easily added via the web interface or you can simply download and install firmware updates as needed. While Zone Protector™ includes email support and a standard 12-month warranty, you can also choose additional warranty upgrades such as a 36-month extended warranty.
urządzenie wykrywające podsłuch, zagłuszanie podsłuchu w telefonie, zagłuszanie podsłuchu w smartfonie, zagłuszanie podsłuchu w pomieszczeniu, urządzenia do zagłuszania podsłuchu, ochrona przed inwigilacją, wysoki poziom ochrony, zagłuszanie podsłuchu w telefonie, zagłuszanie podsłuchu w smartfonie, zabezpieczenie przed podsłuchem, zabezpieczenie przed śledzeniem, bezpieczne rozmowy biznesowe, bezpieczne negocjacje, sejf akustyczny, zapobieganie nagrywaniu rozmów, ochrona przezd podsłuchem, ochrona prywatności, zakłócanie dźwięku, ochrona poufności, blokowanie nielegalnego nagrywania rozmów, wiretapping detection device, jamming of wiretapping on the phone, jamming of wiretapping on the smartphone, jamming of wiretapping in the room, wiretapping jamming devices, protection against surveillance, high level of protection, jamming of wiretapping on the phone, jamming of wiretapping on the smartphone, wiretapping protection, tracking protection, safe business conversations, safe negotiations, acoustic safe, prevention of recording of conversations, protection against wiretapping, protection of privacy, sound jamming, protection of confidentiality, blocking of illegal recording of conversations, Abhörgerät, Abhörsperre am Telefon, Abhörsperre am Smartphone, Abhörsperre im Zimmer, Abhörstörgeräte, Schutz vor Überwachung, Hohes Schutzniveau, Abhörsperre am Telefon, Abhörsperre am Smartphone, Abhörschutz, Tracking-Schutz, Sichere Geschäftsgespräche, Sichere Verhandlungen, Akustischer Safe, Verhinderung der Gesprächsaufzeichnung, Schutz vor Abhören, Schutz der Privatsphäre, Tonstörung, Schutz der Vertraulichkeit, Blockierung der illegalen Gesprächsaufzeichnung
Technical Data
Product Name | Zone Protector™ |
Model # / Ordering SKU | CB-ZP-AMT9900 |
Product Description | User programmable frequency detection device with multiple alerting and notification options |
Operation | Standalone or part of a networked system |
Enclosure Type | External |
Dimensions (W x D x H) | 235mm x 165mm x 30mm |
Weight | 36 Kg |
Localization | Universal |
Detection Radius | Adjustable detection range 5 feet – 150 feet. Set sensitivity range via button combination or granular control via web interface |
Cell Phones Detected | Detects all cell phones, all carriers, in all regions |
Programmable Frequency Range | 20Mhz – 6 Ghz |
Programmable Detection Channels | 127 |
Alert Options | Audio Announcer, High Visibility LEDs, Silent Logging, Relay Alert |
Audio Clip Storage | Up to 95 seconds arbitrarily split into 1 to 16 named audio clips |
Audio Clip Format | WAV file (2 options preloaded, can be updated via web interface |
Default Detection Settings | North America (All Carriers) Preloaded |
Optional Enhanced Detection | Optional Enhanced Detection |
Antenna Type | Internal (Optional external via SMA connector) |
Device Management | Embedded Web Interface |
Antenna Type | Internal (Optional external via SMA connector) |
Microprocessor Speed | 32 Bit |
Power Options | Includes worldwide A/C adapter, Power over Ethernet (PoE) and optional internal rechargeable battery pack |
Speaker Specification | 50mm loudspeaker 1.5W approx 85dB at 1m |
Speaker Volume | User Defined 0 – 80 dB |
User Defined 0 – 80 dB | 32 – 130 Degrees Fahrenheit |
Operating System | Cellbusters proprietary IOS, upgradeable |
Manual Scan (Zone Check) | Ability to manually scan the entire frequency spectrum and display detected RF activity |
Zone Manager Compatible | Yes (Optional) |
Speaker Specification | 50mm loudspeaker 1.5W approx 85dB at 1m |
Speaker Volume | User Defined 0 – 80 dB |
